Street Maps of Towns & Cities
Belfast
or same map at CAIN

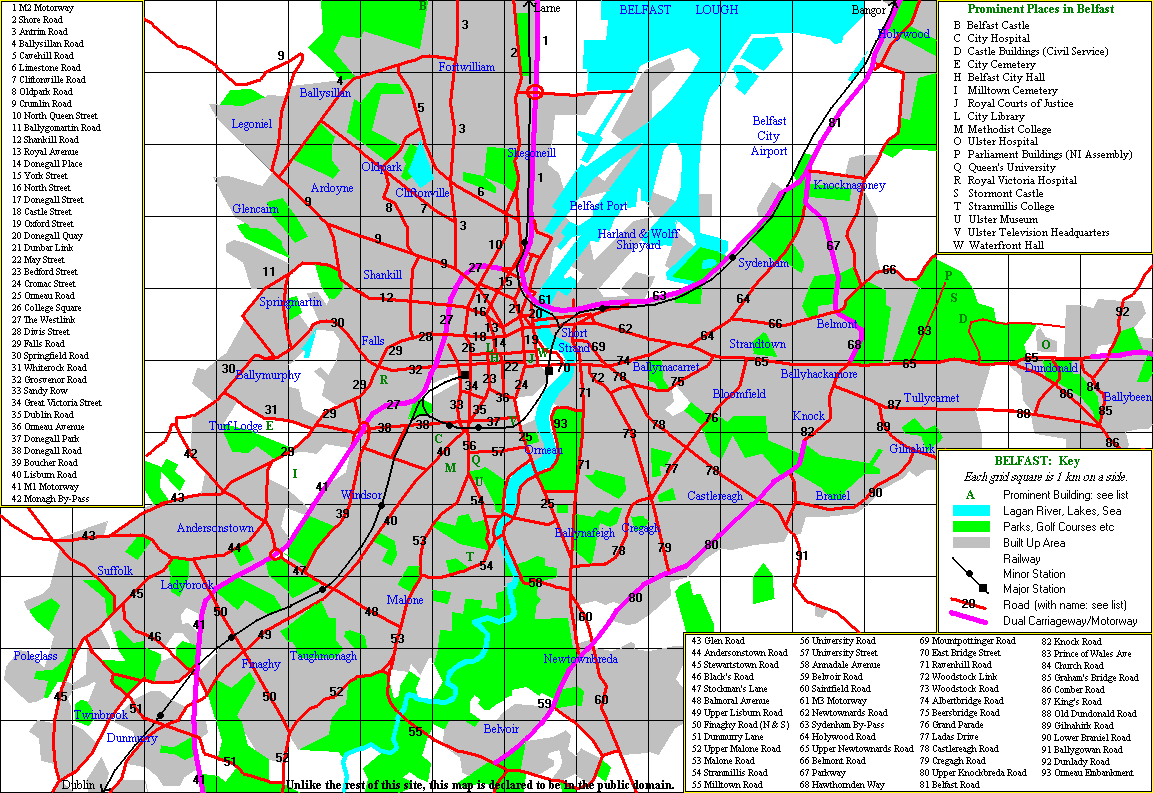

Street map of Belfast, with 93 main roads and 18 prominent buildings named. Scale 72 pixels = 1km. [82kB]

Map of Belfast divided into Electoral Wards. Each ward is coloured to indicate the proportion of Roman Catholics who make up the population. Scale 72 pixels = 1km. [98kB]

Derry
or same map at CAIN

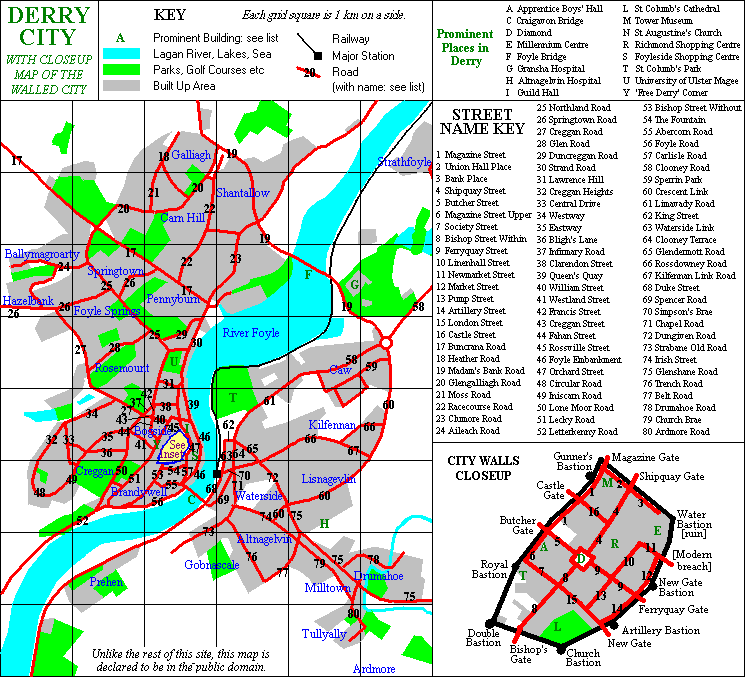

Street map of Derry, with 80 main roads and 16 prominent buildings named. Scale 72 pixels = 1km. [46kB]

Map of Derry divided into Electoral Wards. Each ward is coloured to indicate the proportion of Roman Catholics who make up the population. Scale 72 pixels = 1km. [34kB]

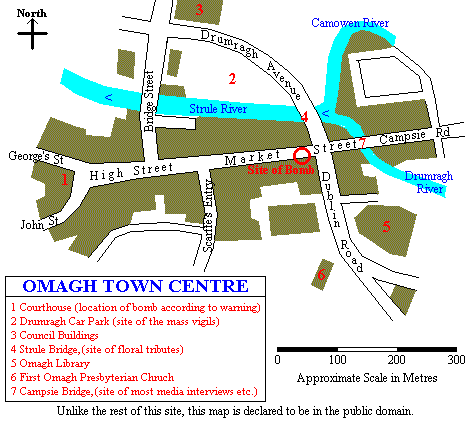

Map showing the town centre in Omagh and the location of the August 15th 1998 bomb explosion. Approximate scale 600 pixels = 1km. [12kB]

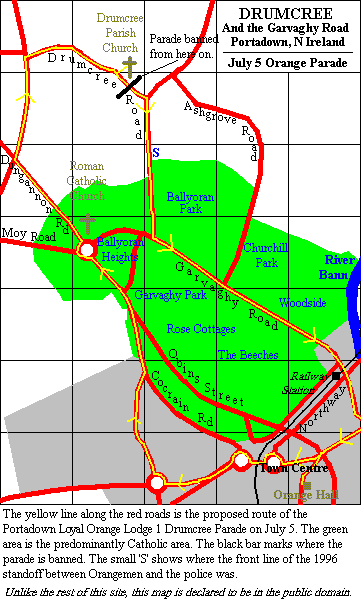

Map of the route of the Drumcree Orange parade and the Garvaghy Road area of Portadown, county Armagh. Also shows the area that is predominantly Roman Catholic. [19kB]

Maps of Counties
Donegal
or same map at CAIN

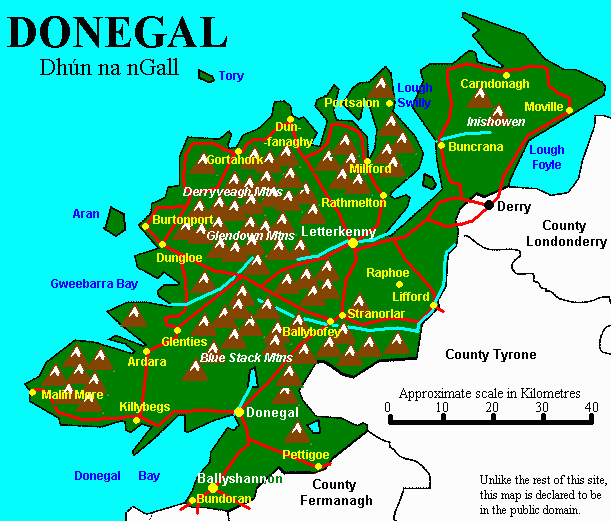

Map of county Donegal, province of Ulster [ROI], showing main towns, roads and mountains. Scale 5 pixels = 1km. [25kB]

Fermanagh
or same map at CAIN

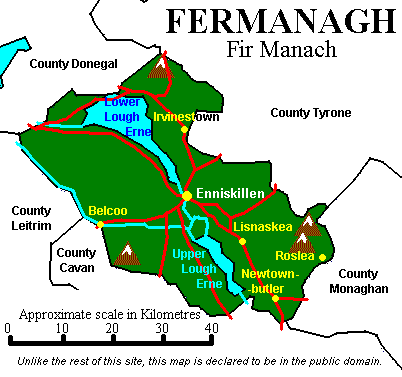

Map of county Fermanagh, province of Ulster [UK], showing main towns, roads and mountains. Scale 5 pixels = 1km. [10kB]

Leitrim
or same map at CAIN

Map of county Leitrim, province of Connaught, showing main towns, roads and mountains. Scale 5 pixels = 1km. [10kB]

Londonderry
or same map at CAIN

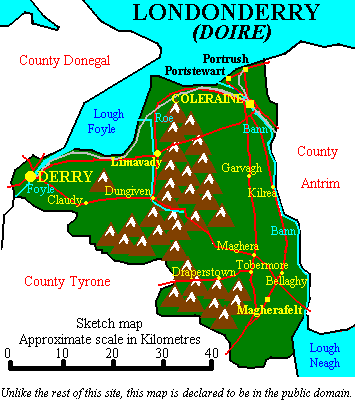

Map of county Londonderry, province of Ulster [UK], showing main towns, roads and mountains. Scale 5 pixels = 1km. [13kB]

Tyrone
or same map at CAIN

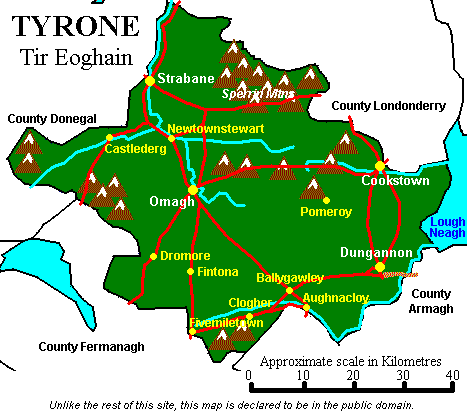

Map of county Tyrone, province of Ulster [UK], showing main towns, roads and mountains. Scale 5 pixels = 1km. [14kB]

Electoral Maps and Charts
Northern Ireland Constituencies
or same map at CAIN

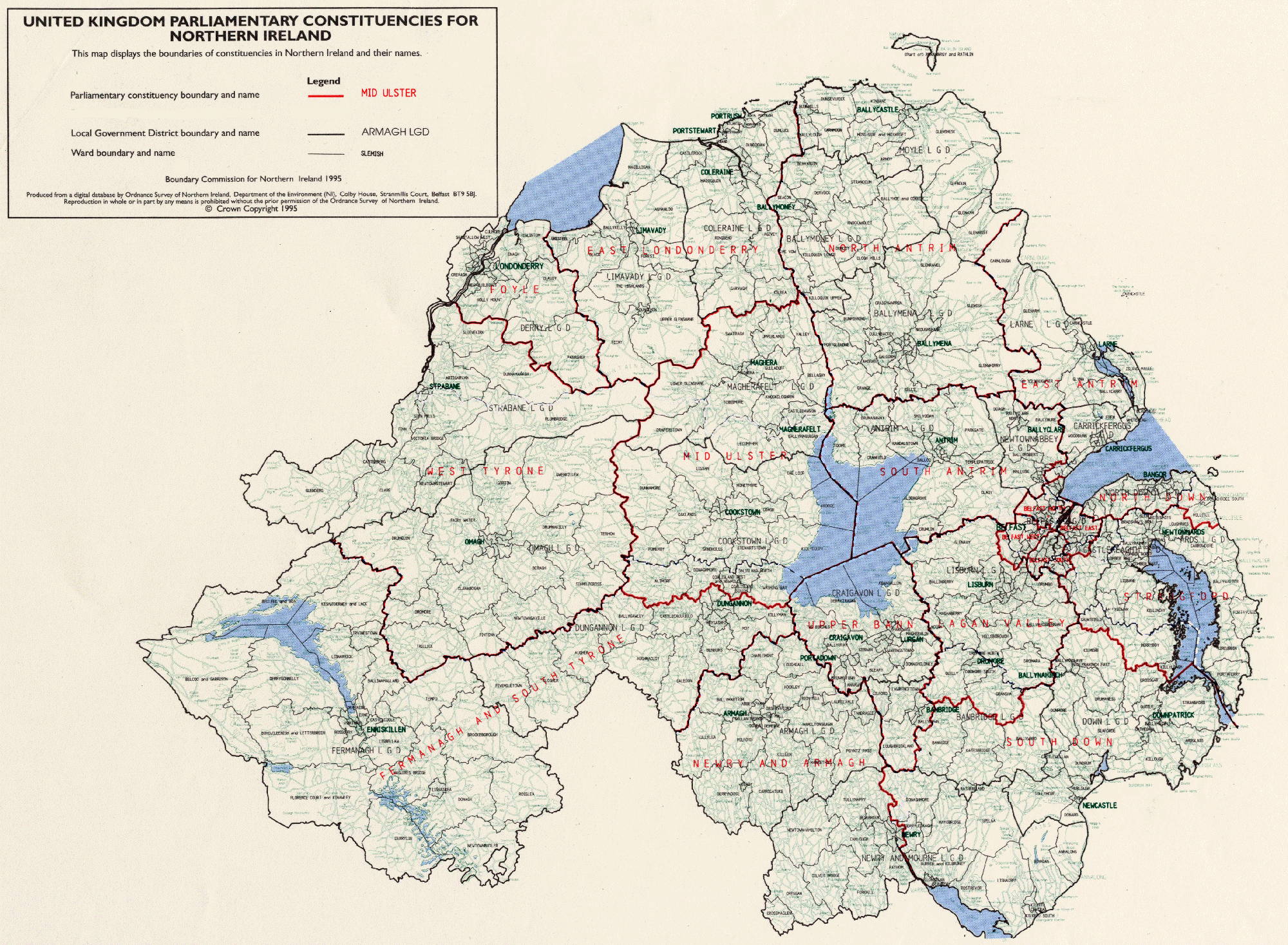

Boundary Commission map showing the electoral constituencies in Northern Ireland as used in the UK Parliament elections and the Northern Ireland Assembly elections, [616kB]

Belfast Constituencies
or same map at CAIN

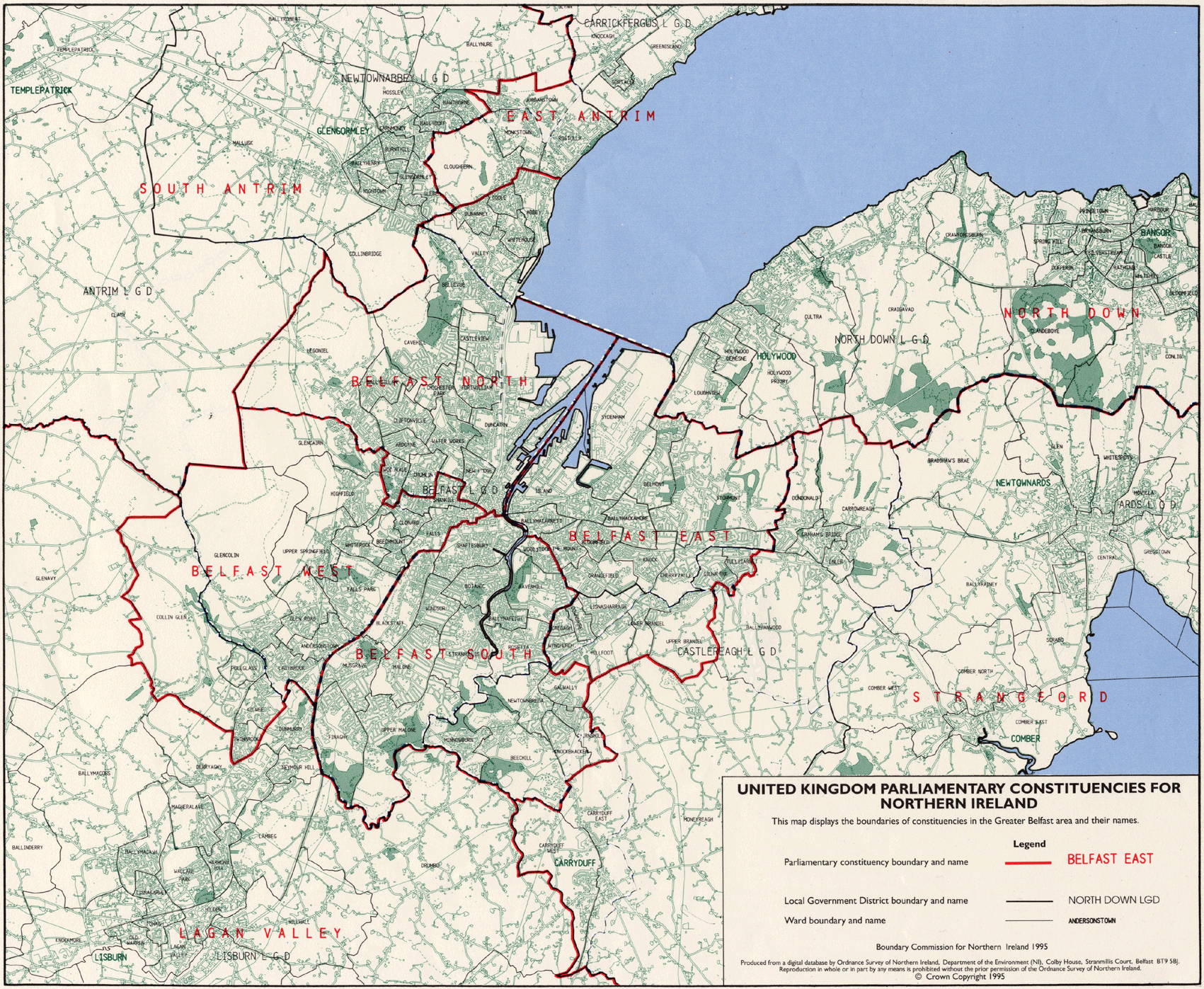

Boundary Commission map showing the electoral constituencies in Belfast as used in the UK Parliament elections and the Northern Ireland Assembly elections, [569kB]

Northern Ireland Constituencies
or same map at CAIN

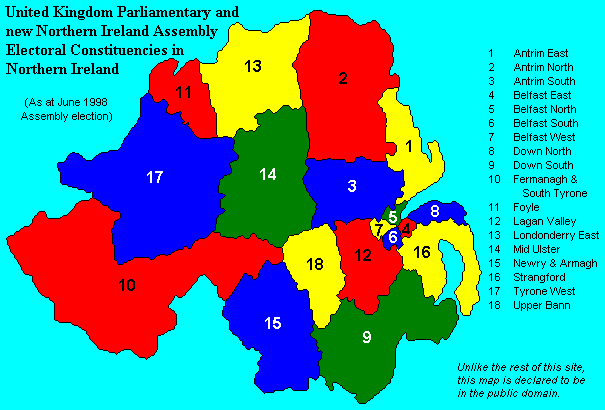

Map showing the electoral constituencies in Northern Ireland as used in the overall UK Parliament elections and the new Northern Ireland Assembly elections, as at the 1998 Assembly election. [13kB]

June 1998 Northern Ireland Assembly Election Results
or same map at CAIN

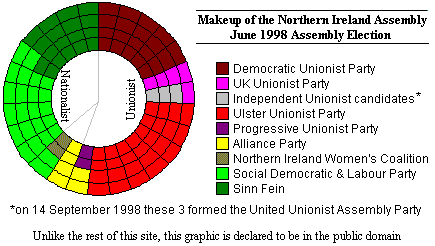

Graphic showing the number of seats allocated to each party at the June 1998 Northern Ireland Assembly election. [8kB]

Northern Ireland voting trends 1981 to 1998
or same map at CAIN

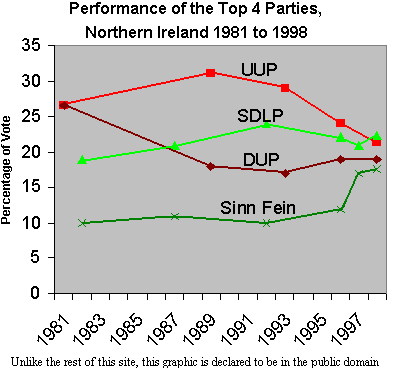

Graph showing the proportion of votes allocated to the top 4 parties in successive elections in Northern Ireland from 1981 to 1998. [7kB]

Dail Eireann Constituencies
or same map at CAIN

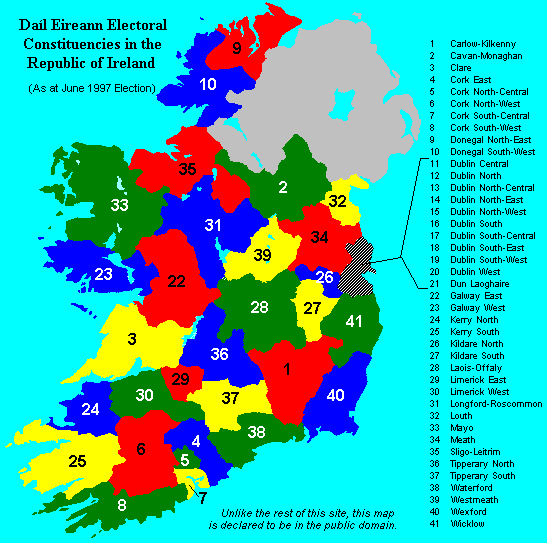

Map showing the Daíl Eireann electoral constituencies in the Republic of Ireland as of the 1997 election. [18kB]

European Union Constituencies
or same map at CAIN

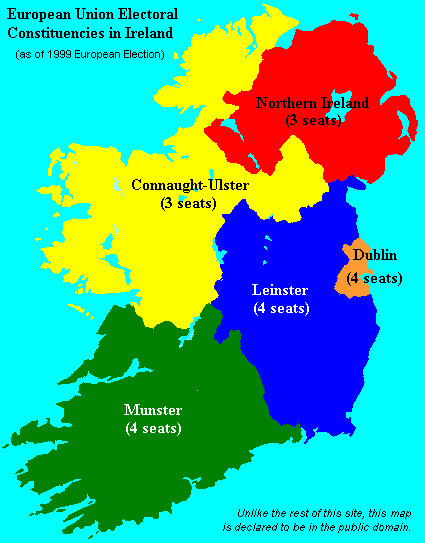

Map showing the European Union electoral constituencies in Ireland, as at the 1999 election. [11kB]

Religious Demography
Protestants in Ireland, 1861 and 1991
or same map at CAIN

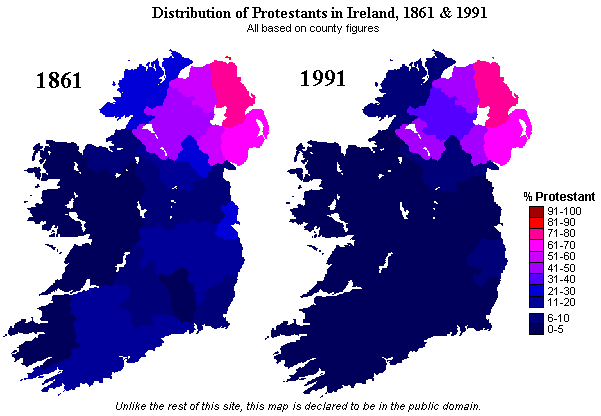

Two-in-one colour-coded map showing the change in the distribution of Protestants in Ireland between 1861 and 1991. [13kB]

Declining Protestant population in the Irish Republic 1891 to 1991
or same map at CAIN

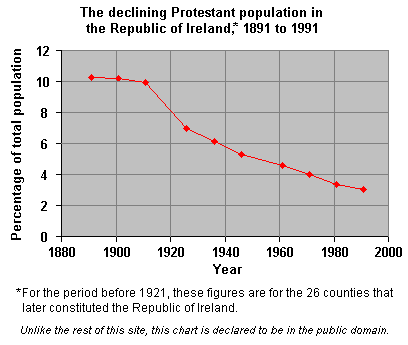

Graph showing the proportion of the population of the Irish Republic who were Protestant in censuses in the period 1891 to 1991. [7kB]

Protestants in
Northern Ireland 1991

or same map at CAIN

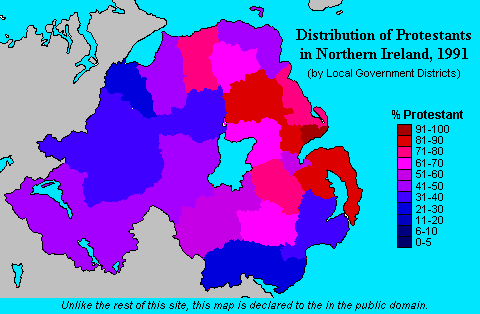

Colour-coded map showing the proportion of each of Northern Ireland's Local Government Districts that is Protestant, 1991. [11kB]

Religious Distribution in
Belfast 1991

or same map at CAIN

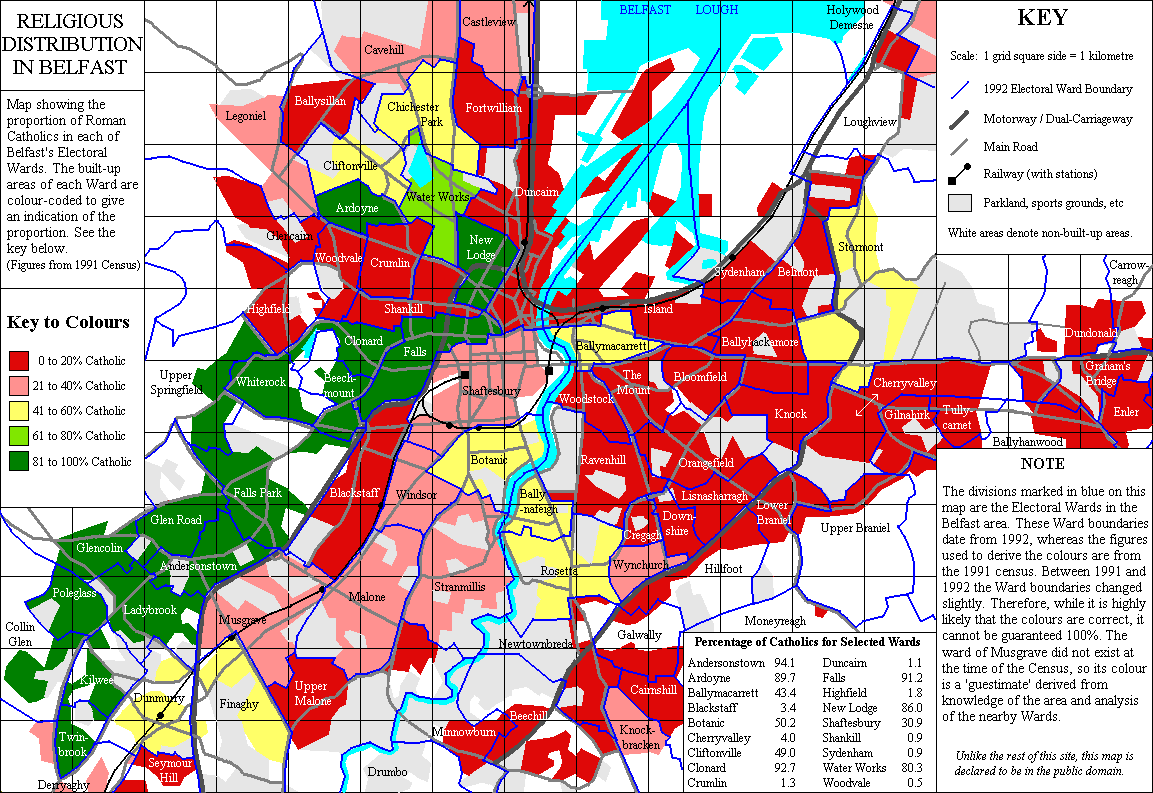

Colour-coded map showing the proportion of each of Belfast's electoral wards that is Roman Catholic, 1991. [98kB]

Religious Distribution in
Derry City 1991

or same map at CAIN

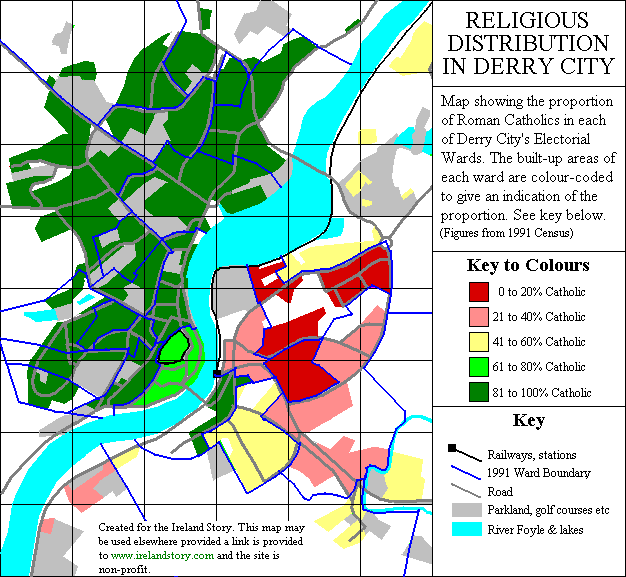

Colour-coded map showing the proportion of each of Derry's electoral wards that is Roman Catholic, 1991. [34kB]

Portadown Garvaghy Area
or same map at CAIN

Map of the route of the Drumcree Orange parade and the Garvaghy Road area of Portadown, county Armagh. Also shows the area that is predominantly Roman Catholic. [19kB]

Population Distribution and Towns
Population Density
or same map at CAIN

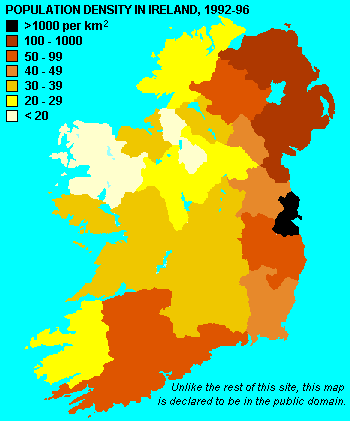

Colour-coded map showing the population density in each of Ireland's counties 1992 to 1996. [9kB]

Settlement Distribution
or same map at CAIN

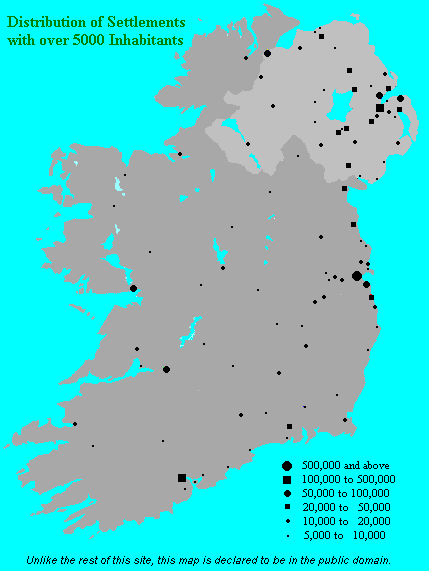

Map indicating the locations and sizes of all towns in Ireland with over 5000 inhabitants. [9kB]

Northern Ireland Towns
or same map at CAIN

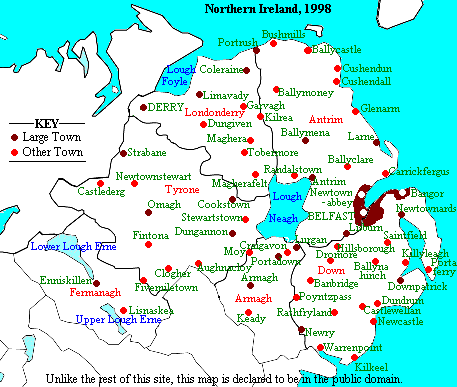

Map showing the main towns in Northern Ireland today. [20kB]

Historical Maps (arranged in chronological order)
Ice Age Ireland
or same map at CAIN

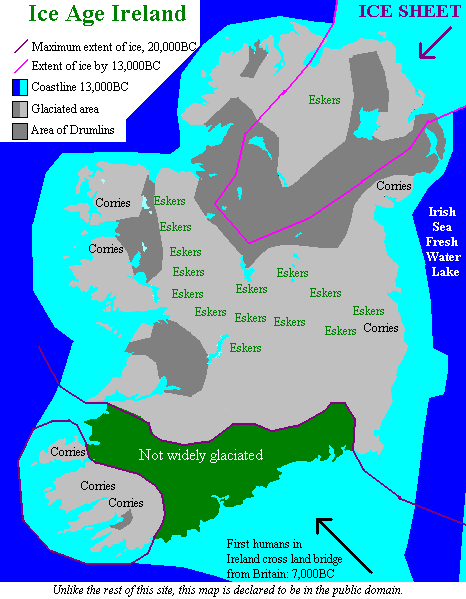

Map showing the extent of the ice coverage in Ireland as well as the locations of the lower coastline and glacial landforms. [19kB]

Ireland 850AD
or same map at CAIN

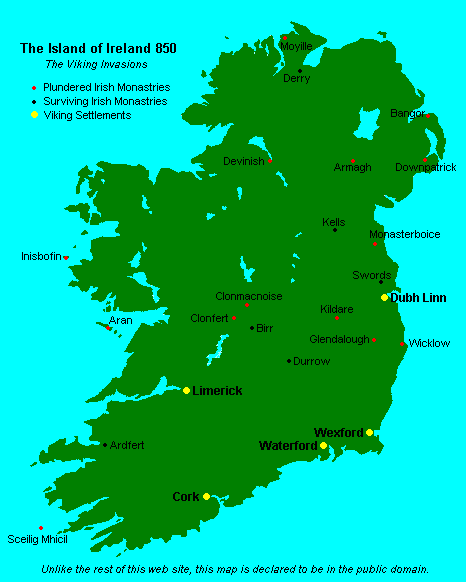

Map of Ireland as it was in 850AD, showing the main Celtic monastries, scenes of major Viking destruction and the main Viking settlements. [10kB]

Ireland 1014
or same map at CAIN

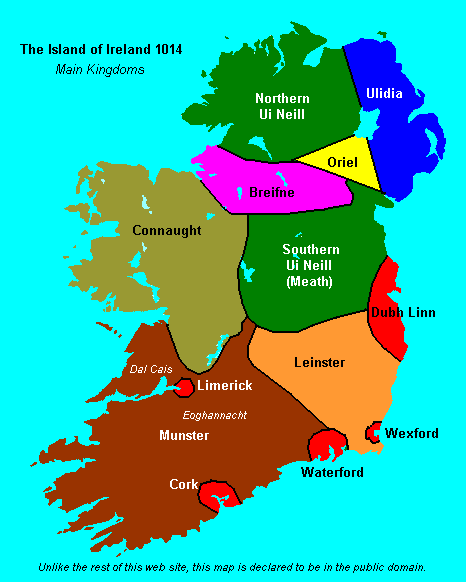

Map of Ireland in 1014AD, showing the main kingdoms ruled by Celtic and Viking monarchs. [13kB]

Ireland 1300
or same map at CAIN

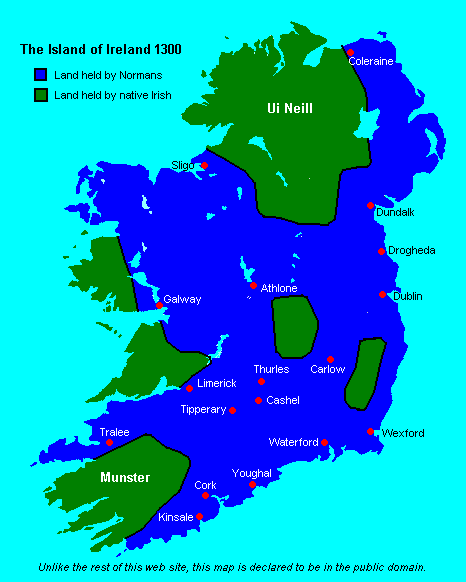

Map of Ireland in 1300AD, showing the maximum extent of Norman control in Ireland and their main settlements. [11kB]

Ireland 1450
or same map at CAIN

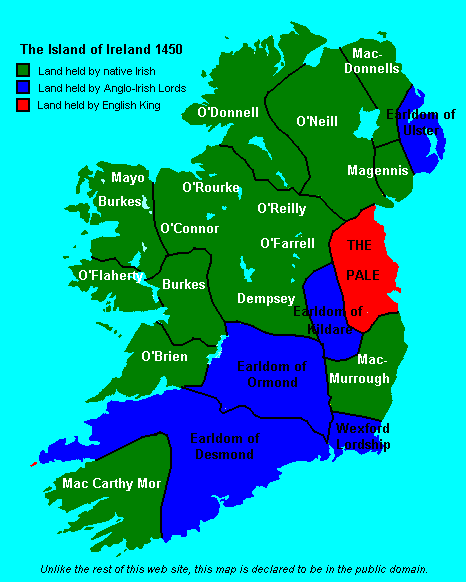

Map of Ireland in 1450, during the Norman decline showing the Celtic areas, Anglo-Irish areas and the English-ruled Pale. [14kB]

Ireland 1609
or same map at CAIN

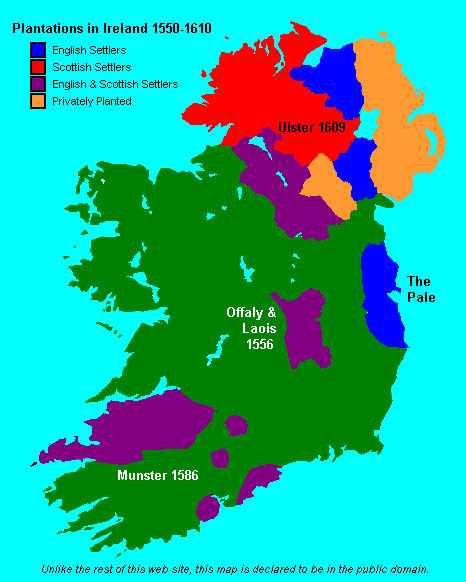

Map of Ireland in 1609, showing the 3 main Plantations that took place between 1556 and 1609. [11kB]

Cromwell in Ireland
or same map at CAIN

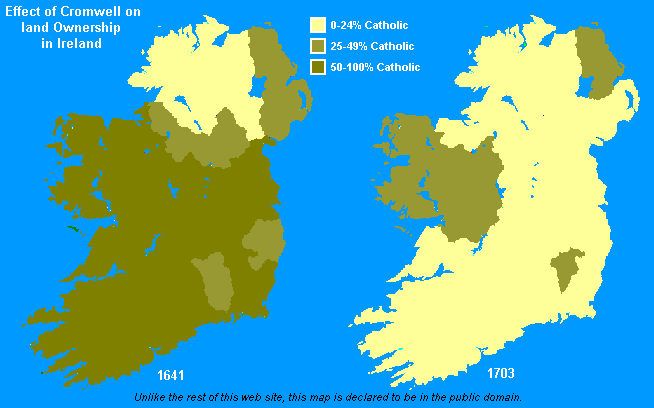

Two-in-one map of Ireland in 1641 and 1703 indicating the effect of Oliver Cromwell's period of rule of Britain and Ireland. Compares the proportion of land in each county in Ireland that was owned by Roman Catholics. [11kB]

Poverty in Ireland, 1841
or same map at CAIN

Map indicating the levels of poverty in Ireland on the eve of the Great Famine. An index based on literacy and housing standards. [11kB]

Severity of the Famine, 1847
or same map at CAIN

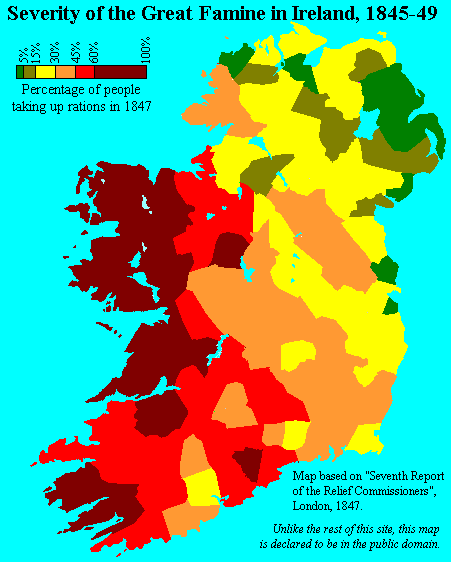

Map showing the varying level of severity of the Great Famine across Ireland at its height in 1847. [13kB]

Population Fall in Ireland, 1841-1851
or same map at CAIN

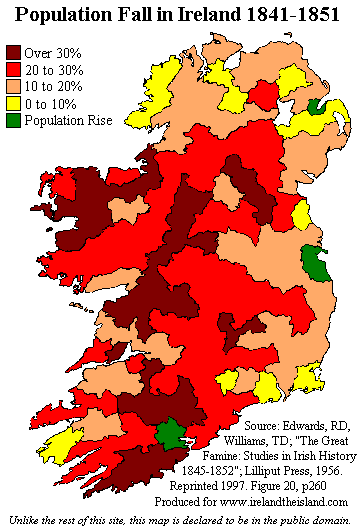

Detailed map showing the levels of population fall over the Famine period in each part of Ireland. [14kB]

Irish Settlement in Britain, 1851
or same map at CAIN

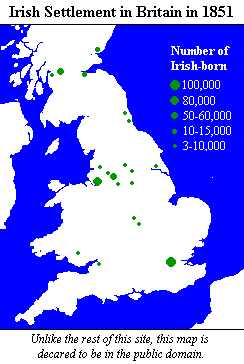

The locations in Britain where Irish-born who emigrated to Britain settled [5kB].

Protestants in Ireland, 1861 and 1991
or same map at CAIN

Two-in-one colour-coded map showing the change in the distribution of Protestants in Ireland between 1861 and 1991. [13kB]

Declining Protestant population in the Irish Republic 1891 to 1991
or same map at CAIN

Graph showing the proportion of the population of the Irish Republic who were Protestant in censuses in the period 1891 to 1991. [7kB]

Changing Republican Activity
or same map at CAIN

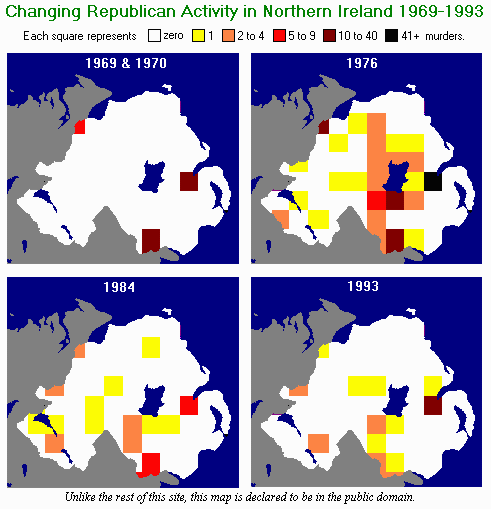

Four-in-one map showing the changing level of Republican violence across Northern Ireland (1969/70, 1976, 1984 and 1993). [16kB]

Changing Loyalist Activity
or same map at CAIN

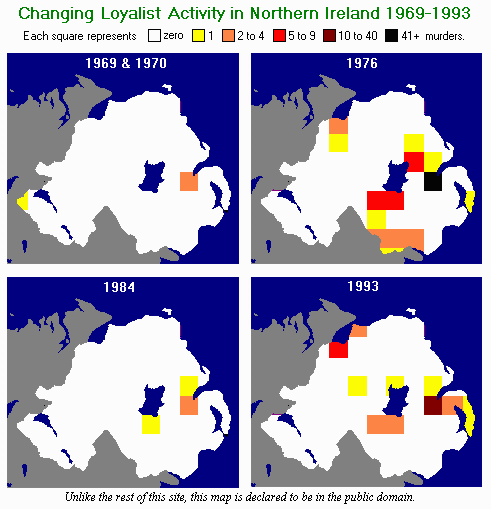

Four-in-one map showing the changing level of Loyalist violence across Northern Ireland (1969/70, 1976, 1984 and 1993). [15kB]

Changing Army & RUC Activity
or same map at CAIN

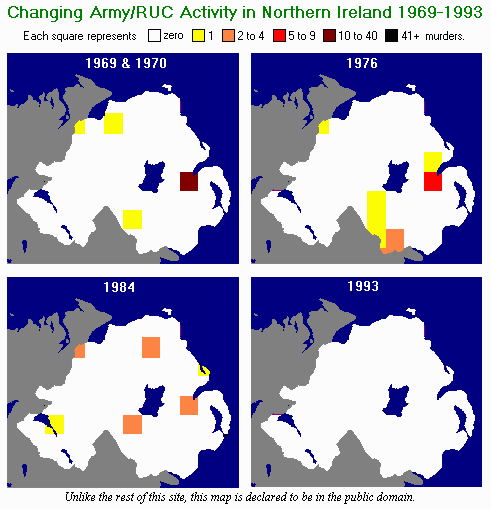

Four-in-one map showing the changing number of deaths attributable to British security forces in Northern Ireland (1969/70, 1976, 1984 and 1993). [15kB]

Physical Geography
Agriculture
or same map at CAIN

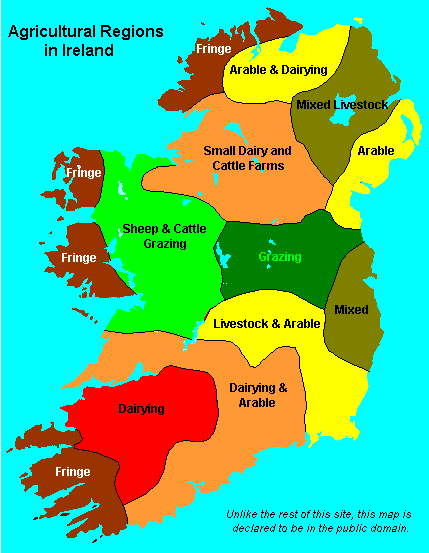

Map showing the agricultural areas of Ireland [14kB]

January Temperatures
or same map at CAIN

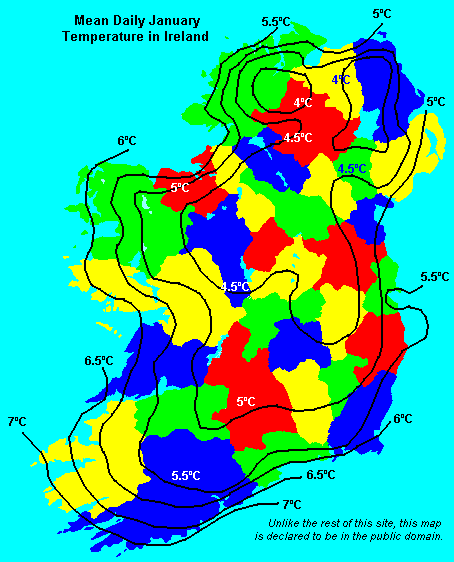

Map showing the mean January temperature pattern in Ireland. [17kB]

July Temperatures
or same map at CAIN

Map showing the mean July temperature pattern in Ireland. [14kB]

Rainfall
or same map at CAIN

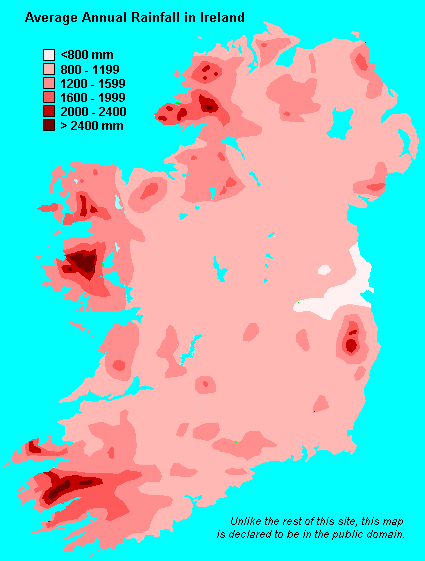

Map showing the mean annual rainfall in Ireland. [12kB]

Sunshine
or same map at CAIN

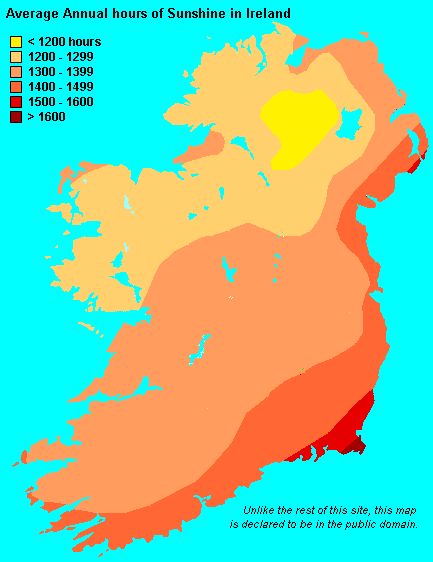

Map showing the mean annual hours of sunshine in Ireland. [10kB]
