Map Set 2: Religious Distribution - Introduction

Maps - Distribution of Catholic population at ward level in Northern Ireland, Belfast and Derry, with peacelines (3 maps)

image of mapThis set of three maps, illustrates the distribution of the Catholic population (and thus also the Protestant population) in Belfast, Derry and Northern Ireland as a whole. Data is mapped at electoral ward level and is based on the 2001 Northern Ireland Census survey results.  There are 582 electoral wards in Northern Ireland as defined by the Boundary Commission for Northern Ireland in 1995.


Maps - Distribution of Catholic population (3 maps compiled and drawn by Luke Kelleher)

Title of Map File Version
PDF L-JPG H-JPG
image of mapCatholics - Northern Ireland - Ward

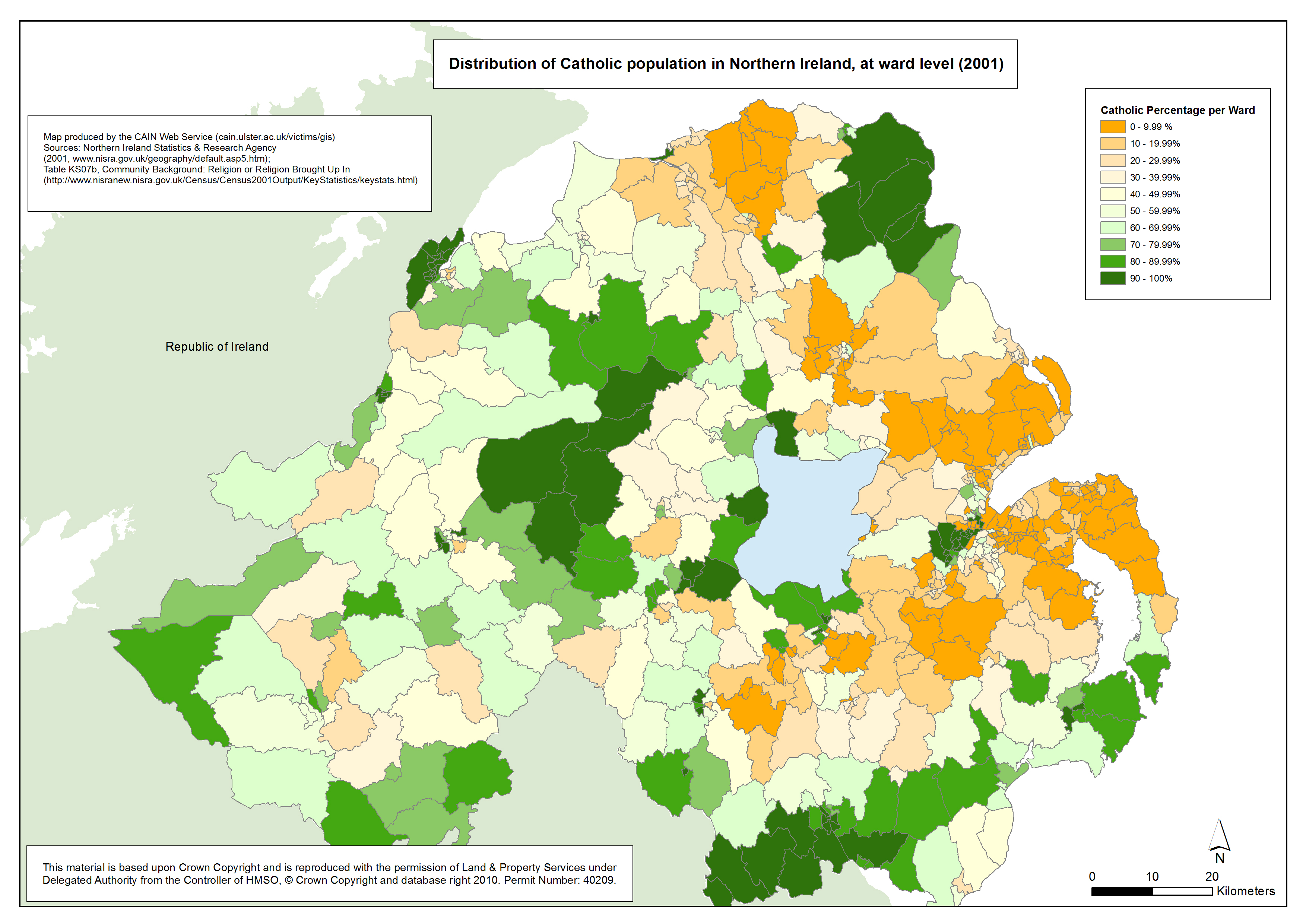

Map showing distribution of Catholic population in Northern Ireland, at ward level (2001).
.pdf
513kb
.jpg
170kb
.jpg
2572kb
image of mapCatholics - Belfast - Ward

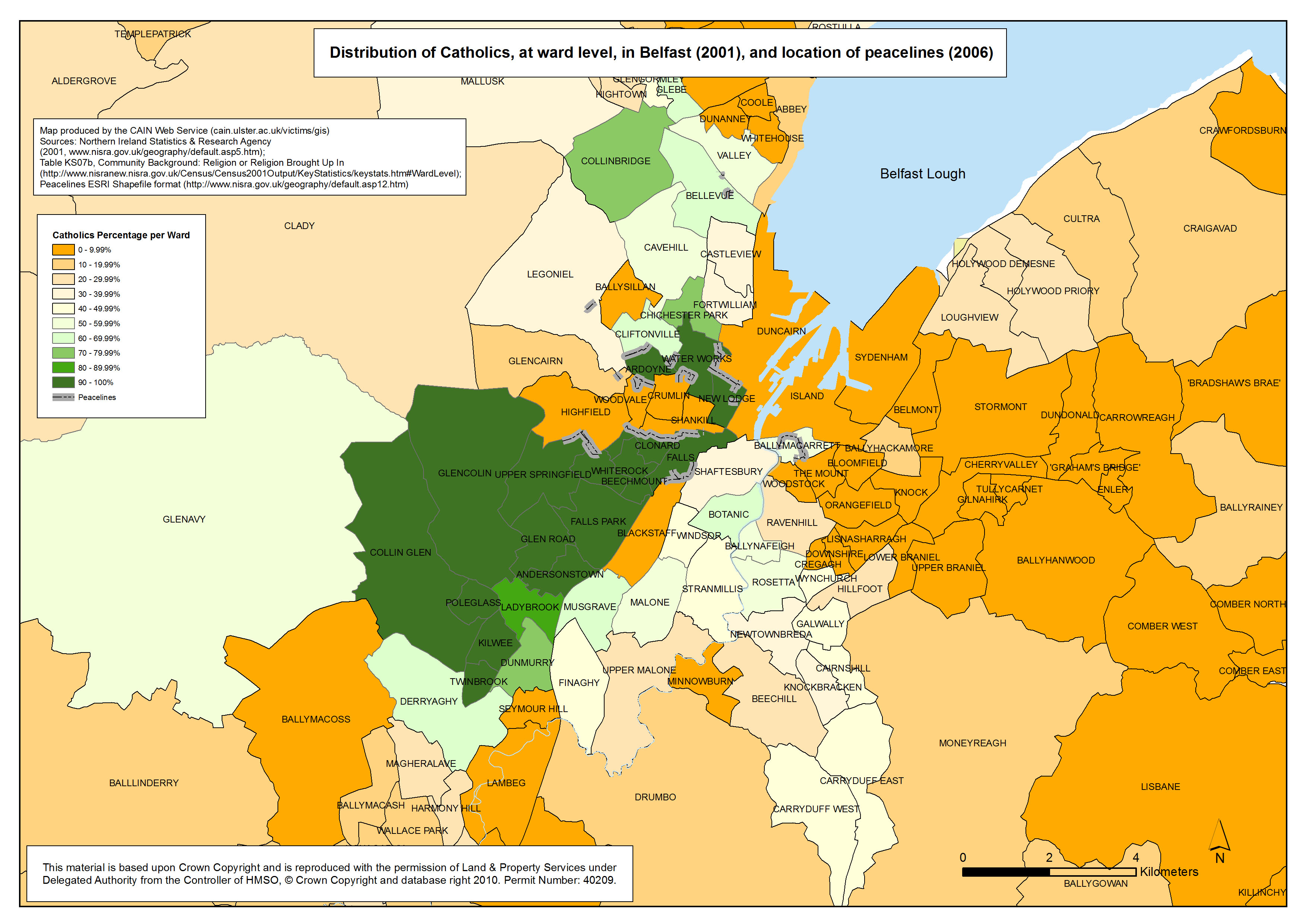

Map showing distribution of Catholic population in Belfast, at ward level (2001), and location of peacelines (2006).
.pdf
633kb
.jpg
196kb
.jpg
1165kb
image of mapCatholics - Derry - Ward

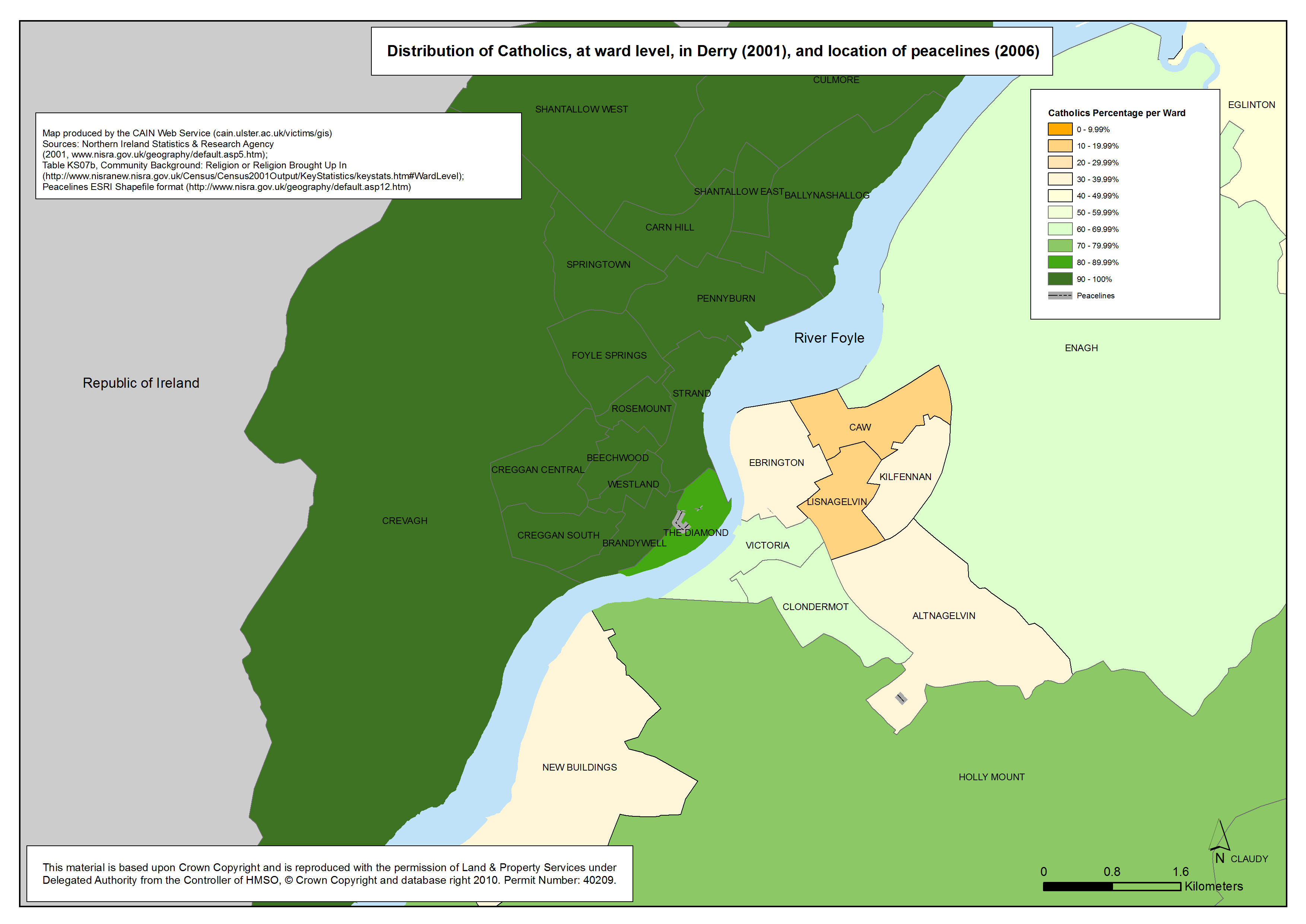

Map showing distribution of Catholic population in Derry, at ward level (2001), and location of peacelines (2006).
.pdf
382kb
.jpg
104kb
.jpg
1429kb



Religious Distribution: Commentary - Martin Melaugh

Maps showing the religious distribution of the Northern Ireland population (based on the 2001 Census) have been produced by other researchers (including some which featured on CAIN; see Maps for Greater Belfast and Northern Ireland). However, it was felt important to reproduce these maps for people using the other map sets featured in this section.

The patchwork distribution of Catholics and Protestants across the region can be traced back to the plans enacted during the Plantation of Ulster (from 1609). While there have been many changes over the past 400 years it is surprising how persistent the basic patterns of settlement have been. Some may notice a correlation between areas with a large proportion of Catholics, and areas of marginal agricultural land including uplands. This outcome is explained because the new Protestant settlers wanted the best, most fertile land which tended to lie in the lowlands.

For those not familiar with Northern Ireland it is worth pointing out that some wards can appear mixed in these maps but they are in fact highly segregated within the ward. So, for example, there are wards in Belfast which have a peaceline running through them with Catholics and Protestant living on either side of the dividing wall.

Religious Distribution: Sources

The electoral ward shapefile was downloaded from EDINA borders Web site.
      http://borders.edina.ac.uk/html/lut_download/ni_ward.html

The religious background data was downloaded from the Northern Ireland Statistics and Research Agency (NISRA) Web site:
      http://www.nisranew.nisra.gov.uk/census/Census2001Output/
      KeyStatistics/ks_settlements.html#settlement%20%20tables

The table used was: 'Table 7S07b Community Background: Religion or Religion Brought Up In'. Ten categories cover the spectrum of the percentage of Catholics per ward. The colour code employed for the ten categories ranges from bright orange in areas of a low percentage of Catholics to dark green in areas of high Catholic percentage, with more neutral shades reflecting those wards with a more mixed composition.

The ‘peacelines’ erected during the troubles with the intention of minimising conflict at interface areas are identified and located. The peacelines shapefile was downloaded from the Northern Ireland Statistics and Research Agency (NISRA) Web site:
      http://www.nisra.gov.uk/geography/default.asp12.htm

Notes

The GIS maps listed above have been produced as part of the AHRC 'Visualising the Conflict' Project. The maps have been reproduced and made available with the permission of Land & Property Services under Delegated Authority from the Controller of HMSO, © Crown Copyright and database right 2010; Permit Number: 40209.

All maps were prepared by Luke Kelleher, then a Research Associate (GIS) working with CAIN. All maps were sized A4 (approximately). GIS software was used to produce TIFF versions (A4 approx; 300dpi) which are available on request. Three versions of each map have been made available above:

  • PDF versions (A4 approx; 300dpi) are based on original TIFF files.
  • L-JPG versions (1000px700p approx; 72dpi) are low resolution JPEG images.
  • H-JPG versions (A4 approx; 300dpi) are high resolution JPEG images.
